| Quantity: | |
|---|---|
Project
| Unit
| Parameter
| |
Workbench | working desk size | mm | 1050*500 |
Workbench T-slot | 5-18*90 | ||
Maximum load of table | kg | 600 | |
Stroke | Left and right stroke (X) | mm | 800 |
Front and back stroke (Y) | mm | 500 | |
Up and down stroke (Z) | mm | 600 | |
Spindle | Distance from spindle center to column guide rail | mm | 550 |
Distance from spindle end to worktable | mm | 140-740 | |
Spindle tool holder | BT40 | ||
Spindle speed | rpm | 8000 | |
Servo motor | X, Y, Z motor connection mode | Direct | |
Tool | Tool handle model | BT40 | |
Tool magazine capacity | 24 discs | ||
Pull nail model | BT40 45° | ||
Fast-moving | XYZ rapid traverse speed | m/min | 20-20-15 |
Cutting feed rate | m/min | 10 | |
Precision | XYZ repeat positioning accuracy | mm | ±0.004 |

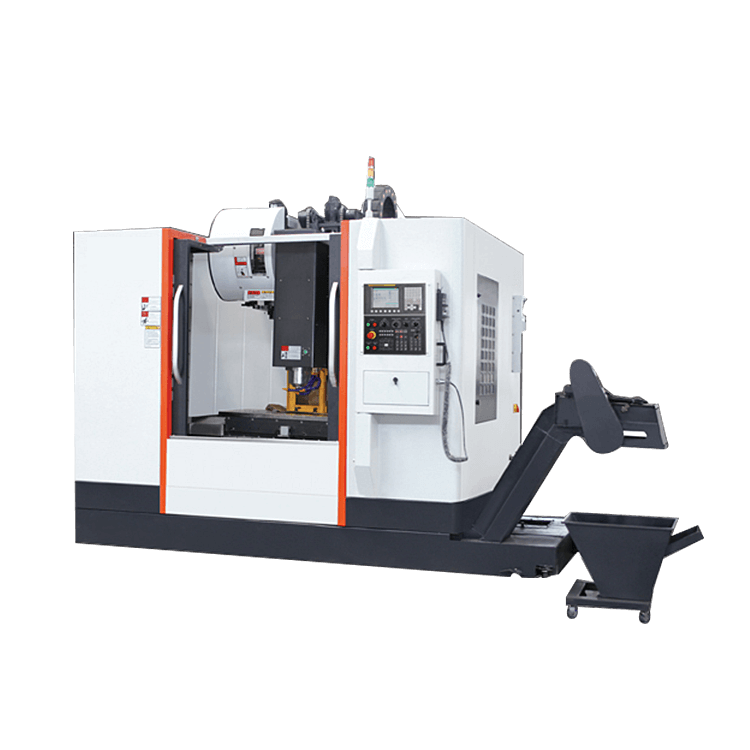

Vertical machining center Features：
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japan NSK bearing
Germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Vertical machining center use：
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
