| Quantity: | |
|---|---|

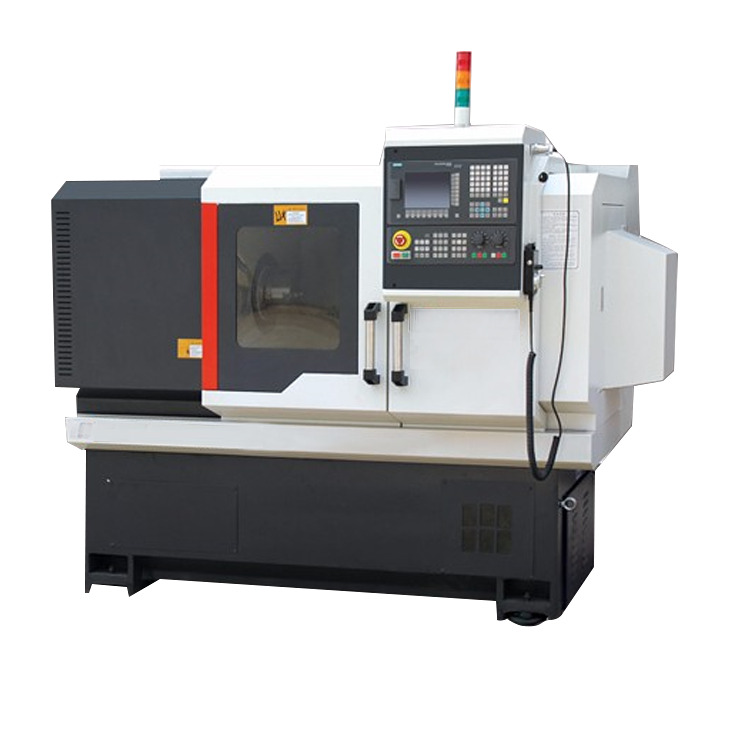

Project | Unit | CK6140/550 | CK6140/1000 | |
1 | Maximum turning diameter of bed | mm | Φ400 | Φ400 |
2 | Maximum turning diameter of slide | mm | Φ240 | Φ180 |
3 | Maximum turning length | mm | 420 | 850 |
4 | Spindle hole diameter | mm | Φ48 | Φ48 |
5 | Bar diameter | mm | Φ45 | Φ45 |
6 | With hollow chuck pull rod through hole | mm | Φ40 | Φ40 |
7 | Spindle end type | A2-6 | A2-6 | |
8 | Chuck | mm | OrdinaryΦ200/Chuck | OrdinaryΦ200/Chuck |
9 | Taper of spindle taper | No | Chuck | / |
10 | Tailstock configuration | / | Ordinary hand crank | |
11 | Spindle speed limit | rpm | 2000 | 2000 |
12 | Diameter of tailstock sleeve | mm | Φ60 | Φ65 |
13 | Taper of inner hole of tailstock sleeve | No | MT4# | MT4# |
14 | Tailstock sleeve stroke | mm | 100 | 140 |
15 | Electric tool post knife number | Bundle | 4 | 4 |
16 | Square knife size | mm | 20×20（Four stations） | 20×20（Four stations） |
17 | Main motor power | KW | 5.5 | 5.5 |
18 | Total power | KW | 11 | / |
19 | Machine weight | Kg | 1800 | 1800 |
20 | Dimensions (length × width × height) | mm | 2200×1160×1620 | 2600×1500×1650 |
CNC system: use Guangzhou CNC, CNC system can be equipped with Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 8-inch manual chuck spring chuck dual purpose, optional hydraulic chuck or hydraulic chuck
Tailstock: manual tailstock
Tool holder：CK6140/550 4-station electric tool post
CK6140/1000 4-station electric tool post，Optional 6-station electric tool post or station electric tool post
