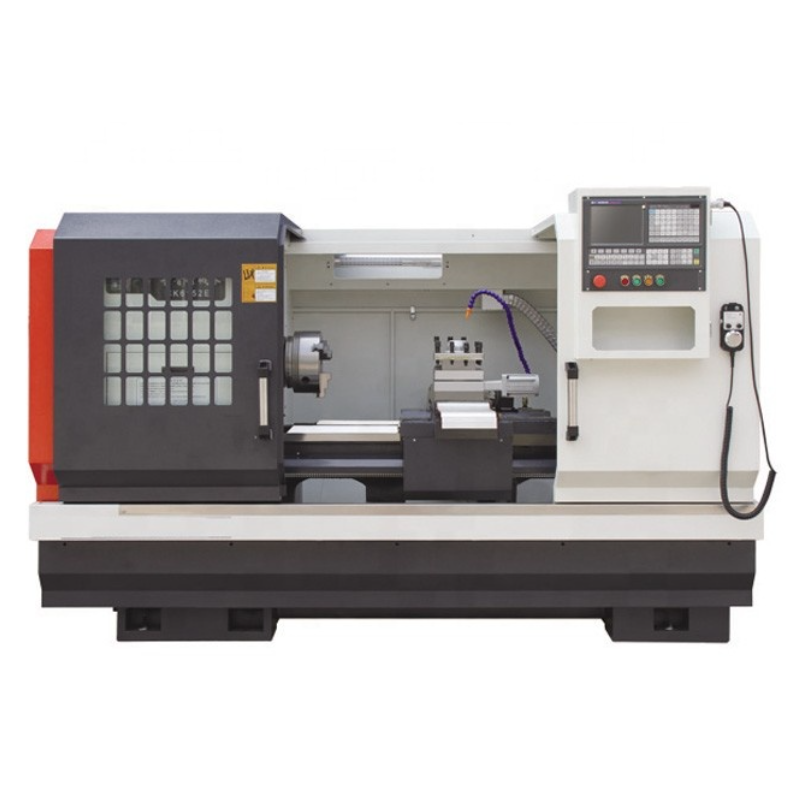

| Quantity: | |
|---|---|
Project | Unit | Parameter |
Maximum turning diameter of bed | mm | Φ650 |
X-direction rail span | mm | 330 |
Z-direction rail span | mm | 550 |
Maximum turning diameter of slide | mm | Φ375 |
Center distance | mm | 1000 |
Maximum turning length | mm | 950 |
Spindle hole diameter | mm | Φ105 |
Bar diameter | mm | Φ105 |
With hollow chuck pull rod through hole | mm | Φ88 |
Spindle end type | C11 | |
Chuck | mm | Ordinary Φ320 |
Taper of spindle taper | No | Metric 120, 1:20 |
Spindle speed range | rpm | Manual 3 gears（10~85，40~350，100~850） |
Diameter of tailstock cover | mm | Φ100 |
Taper of inner hole of tailstock cover | No | MT6# |
Simple stroke of tail seat cover | mm | 250 |
Tailstock configuration | Ordinary hand crank | |
Electric tool post knife number | Bundle | 4 |
Knife square size | mm | 32*32 (four stations) |
Main motor power | kw | 11 (frequency conversion) |
Total power | kw | 16 |
Machine weight | kg | 4000 |
Dimensions (length, width, height) | mm | 3500*1900*1900 |
CNC system: use Guangzhou CNC, CNC system can be equipped with Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 320mm manual chuck, optional hydraulic chuck or hydraulic chuck
Main shaft: three-speed gear transmission, stepless in the gear
Tool post: 4-station electric tool post, optional 6-station electric tool post or station electric tool post.
