| Quantity: | |
|---|---|

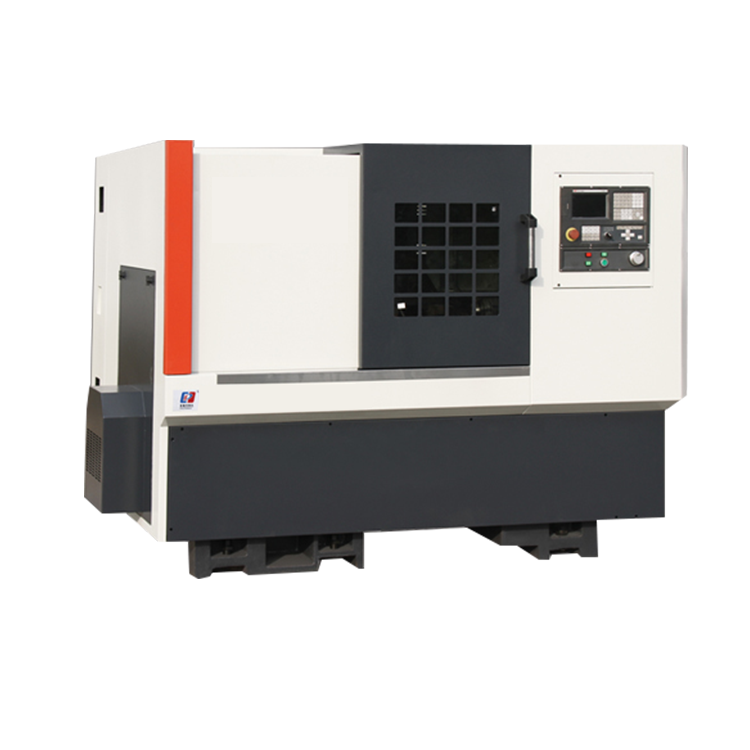

Machine model | unit | TCK46A | |
1 | Maximum turning diameter of bed | mm | Φ460 |
2 | Maximum turning diameter of cross slide | mm | Φ170 |
3 | Maximum processing length | mm | 350 |
4 | Maximum machining diameter (disk type) | mm | Φ400 |
5 | Standard chuck specifications | inch | 8inches |
6 | Spindle speed | rpm | 3500rpm |
7 | Spindle speed stage | ||
8 | Spindle end code | A2-5 | |
9 | Spindle through hole | mm | Φ56 |
10 | Pull tube through hole | mm | Φ45 |
11 | Fast moving speed | m/min | X：18 Z：18 |
12 | Cutting feed rate | mm/min | 1-15000 |
13 | X/Z motor torque | Nm | 7.5/7.5（X direction with brake） |
14 | Spindle motor power | KW | 7.5/11 |
15 | Horizontal turret station | 8 | |
16 | Tool body size | mm | 25×25 |
17 | Sleeve diameter | mm | 70 |
18 | Sleeve stroke | mm | 80 |
19 | Taper hole of tailstock sleeve | Mohs 5# | |
20 | Maximum stroke of tailstock | mm | 200 |
21 | Dimensions (length × width × height) | mm | 2500*1700*1890 |
22 | Total Weight | kg | 2600 |
CNC system: use Guangzhou CNC system, optional Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 8-inch hollow hydraulic chuck
Overall inclined bed, hydraulic tailstock
Tool post: 8-station hydraulic turret, optional servo turret
Machine model | unit | TCK46A | |
1 | Maximum turning diameter of bed | mm | Φ460 |
2 | Maximum turning diameter of cross slide | mm | Φ170 |
3 | Maximum processing length | mm | 350 |
4 | Maximum machining diameter (disk type) | mm | Φ400 |
5 | Standard chuck specifications | inch | 8inches |
6 | Spindle speed | rpm | 3500rpm |
7 | Spindle speed stage | ||
8 | Spindle end code | A2-5 | |
9 | Spindle through hole | mm | Φ56 |
10 | Pull tube through hole | mm | Φ45 |
11 | Fast moving speed | m/min | X：18 Z：18 |
12 | Cutting feed rate | mm/min | 1-15000 |
13 | X/Z motor torque | Nm | 7.5/7.5（X direction with brake） |
14 | Spindle motor power | KW | 7.5/11 |
15 | Horizontal turret station | 8 | |
16 | Tool body size | mm | 25×25 |
17 | Sleeve diameter | mm | 70 |
18 | Sleeve stroke | mm | 80 |
19 | Taper hole of tailstock sleeve | Mohs 5# | |
20 | Maximum stroke of tailstock | mm | 200 |
21 | Dimensions (length × width × height) | mm | 2500*1700*1890 |
22 | Total Weight | kg | 2600 |
CNC system: use Guangzhou CNC system, optional Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 8-inch hollow hydraulic chuck
Overall inclined bed, hydraulic tailstock
Tool post: 8-station hydraulic turret, optional servo turret
