| Quantity: | |
|---|---|

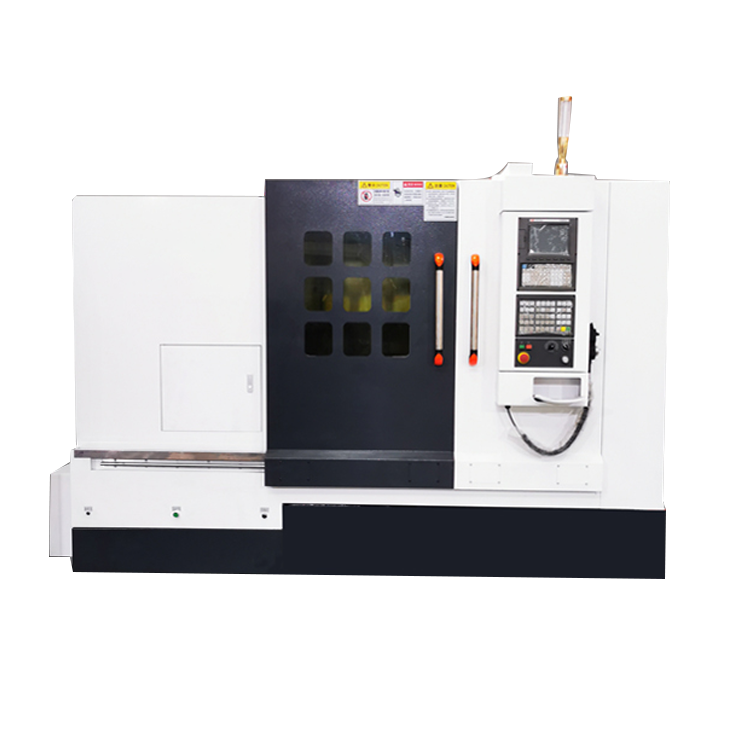

Machine model | unit | TCK50A×500 |
Maximum turning diameter of bed | mm | Φ560 |
Maximum turning diameter of cross slide | mm | Φ260 |
Maximum processing length | mm | 500 |
X axis maximum stroke | mm | 240 |
Y axis maximum stroke | ±40 | |
Z axis maximum stroke | mm | 540 |
Spindle speed | rpm | 3500rpm |
Spindle speed stage | Continuously variable speed | |
Spindle end code | A2-5 | |
Spindle through hole | mm | Φ56 |
Fast moving speed | m/min | X:18 Z:18 |
Cutting feed rate | mm/min | 1-15000 |
X/Z Repeated positioning accuracy | mm | ±0.003 |
X/Z motor torque | NM | 15/10 (X direction with brake) |
Spindle motor power | KW | 7.5/11 |
Dota | 12-station power turret with Y axis | |
Turret knife holder | BMT45（ER20） | |
Sleeve diameter | mm | 70 |
Sleeve stroke | mm | 80 |
Maximum stroke of tailstock | mm | 450 |
Dimensions (length × width × height) | mm | 2600*1850*2000 |
Total Weight | mm | 2900 |
CNC system: use Guangzhou CNC system, optional Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 10-inch hollow hydraulic chuck
Overall inclined bed, hydraulic tailstock
Tool post: 8-station hydraulic turret, optional servo turret
Machine model | unit | TCK50A×500 |
Maximum turning diameter of bed | mm | Φ560 |
Maximum turning diameter of cross slide | mm | Φ260 |
Maximum processing length | mm | 500 |
X axis maximum stroke | mm | 240 |
Y axis maximum stroke | ±40 | |
Z axis maximum stroke | mm | 540 |
Spindle speed | rpm | 3500rpm |
Spindle speed stage | Continuously variable speed | |
Spindle end code | A2-5 | |
Spindle through hole | mm | Φ56 |
Fast moving speed | m/min | X:18 Z:18 |
Cutting feed rate | mm/min | 1-15000 |
X/Z Repeated positioning accuracy | mm | ±0.003 |
X/Z motor torque | NM | 15/10 (X direction with brake) |
Spindle motor power | KW | 7.5/11 |
Dota | 12-station power turret with Y axis | |
Turret knife holder | BMT45（ER20） | |
Sleeve diameter | mm | 70 |
Sleeve stroke | mm | 80 |
Maximum stroke of tailstock | mm | 450 |
Dimensions (length × width × height) | mm | 2600*1850*2000 |
Total Weight | mm | 2900 |
CNC system: use Guangzhou CNC system, optional Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 10-inch hollow hydraulic chuck
Overall inclined bed, hydraulic tailstock
Tool post: 8-station hydraulic turret, optional servo turret
