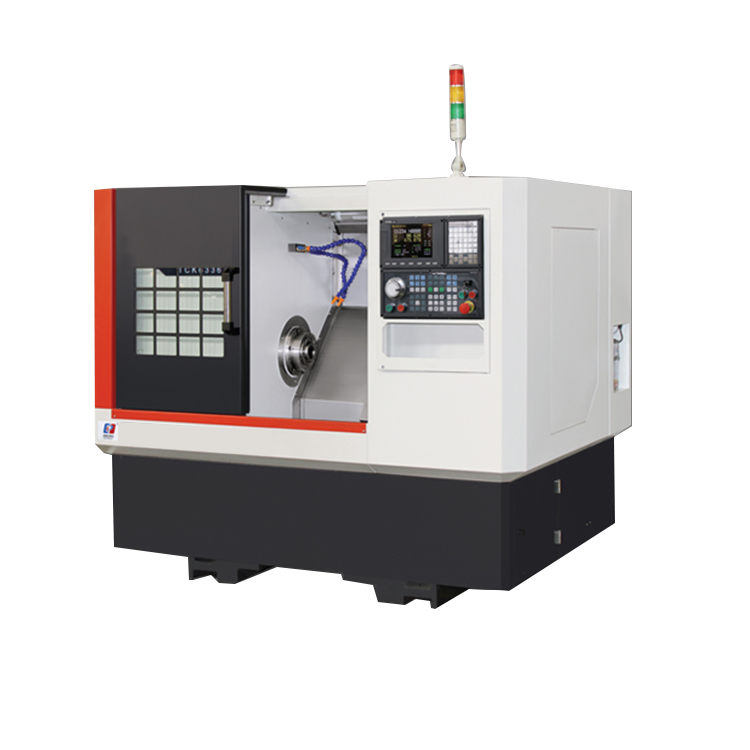

TCK6340

Availability:
Quantity:

Project

unit

TCK6340

TCK6340S

Maximum turning diameter of bed

mm

Φ400

Φ400

Maximum turning diameter of slide

mm

Φ140

Φ140

Maximum processing length

mm

200 (row knife)

300 (electric turret) 270 (hydraulic turret)

Clamping form


Rear collet

/

Standard chuck specifications



6 inches

X axis maximum stroke

mm

400

400

Z axis maximum stroke

mm

300

400

Spindle speed

rpm

3500

3500

Spindle speed stage


Continuously variable speed

Continuously variable speed

Spindle end code


A2-5

A2-5

Inner diameter of main shaft pull tube

mm

Φ40

Φ40

Fast moving speed

m/min

X:18 Z:15

X:18 Z:15

Cutting feed rate

mm/min

1-15000

1-15000

X/Z motor torque

mm

6/6(X direction with brake)

6/6(X direction with brake)

Spindle motor power

kw

5.5 Servo

5.5 Servo

Horizontal turret station


/

8

Tool body size


/

20*20

Diameter of boring tool


/

Φ25

Tool bar section


20*20

/

Tool holder

mm

Row of tools


/

X/Z direction repeat positioning accuracy

mm

±0.003

±0.003

Total power capacity

kva

11

11

Cutting water tank capacity

L

90

90

Machine weight

kg

2200

2500

Dimensions (length, width, height)

mm

2300*1500*1750

2390*1500*1750

The system adopts Guangshu, optional Kane, Siemens, Taiwan new generation, FANUC system

Clamping method: hydraulic chuck, optional 6-inch hollow hydraulic chuck

Overall inclined bed with hydraulic tailstock

Tool holder: 4 rows of tool holders(TCK6340)
